Optical fibre termination device
Simple optical fibre management
Optical distribution and termination box S
Der Langmatz Gf-AP Gr. S is a quality product that combines many innovative and proven features. It enables easy fiber optic management in a robust, protected housing made of polycarbonate. It stands out for its easy handling and simple installation, with high quality requirements for the accommodation, laying, and commissioning of delicate fiber optic technology.
Dimensions W x H x D 94 x 130 x 25 mm
Feeder: 1x Ø 5, 7, 10 mm and 2x Ø 5, 7 mm
Coupler slots: 5 slots (ONT) 3 slots (optical fibre spl. dist.) either 6x SC simplex, LC duplex or E2000 simplex coupler
Splice protector storage: for 12x crimp or heat shrink splice protectors
Optical distribution and termination box M
The Langmatz Gf-AP Gr. M allows for the management of up to 12 optical fibers integrated into a robust polycarbonate housing with IP 54 protection rating and internal couplings. It is characterized by easy handling and simple installation while maintaining high quality standards for the handling, routing, and commissioning of delicate fiber optic technology. Additionally, it is certified according to the funding guidelines of the federal broadband funding program.
Size W x H x D: 163 x 242 x 46 mm
Coupler slots: 6 slots (ONT) 3 slots (optical fibre spl. dist.) either 6x SC simplex, LC duplex or E2000 simplex coupler
Feeder: 1x Ø 5, 7, 10, 12 mm
Splice protector storage: for 12x crimp or heat shrink splice protectors

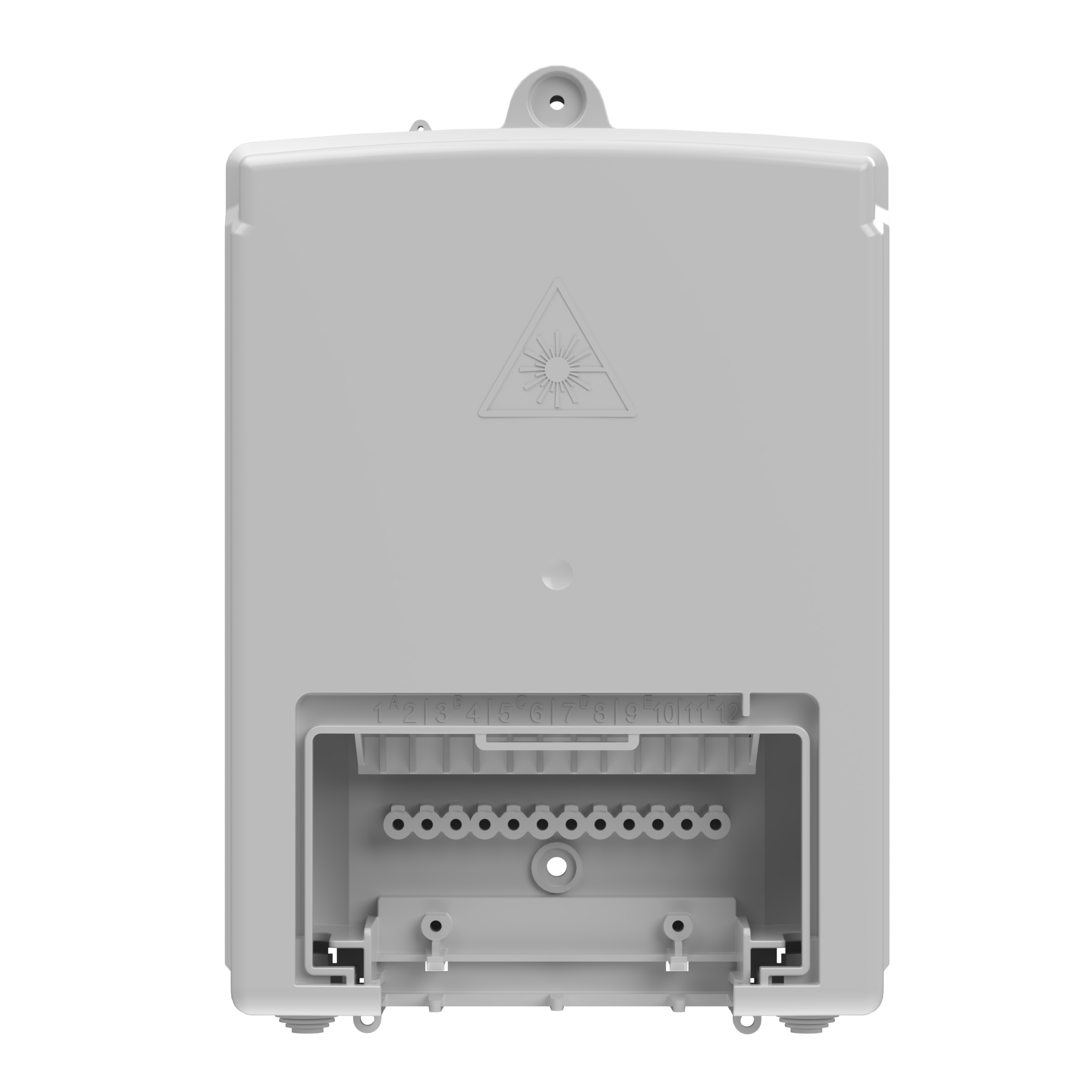

Optical distribution and termination box M
The Langmatz M Easy-Connect optical fibre distribution and termination box provides a secure tray section for network operators, at the same time providing end customers with access to the patch area: This increases security, reduces service calls and provides for efficient installation and operation. Up to 12 optical fibres can be managed in a structured manner in the sturdy polycarbonate cabinet. Easy installation and clean fibre handling guarantee high-grade technical quality and security of investment.
Size W x H x D: 163 x 242 x 46 mm
Coupler slots: 6 slots (ONT) 6 slots (optical fibre spl. dist.) either 6x SC simplex, LC duplex or E2000 simplex coupler
Feeder: 1x Ø 5, 7, 10, 12 mm
Splice protector storage: for 12x crimp or heat shrink splice protectors
Optical distribution and termination box M+ 3.0
The Langmatz Gf-AP M+ 3.0 enables the management of up to 12 optical fibers using a flexible mounting plate, integrated into a robust polycarbonate housing with IP 54 protection rating. It stands out for its easy handling and simple installation, while maintaining high quality standards for the handling, routing, and commissioning of delicate fiber optic technology. Additionally, it is certified according to the funding guidelines of the federal broadband funding program. Now with Langmatz cassettes.
Size W x H x D: 160 x 285 x 46 mm
Feeder: 1x Ø 5, 7, 10, 12 mm
Coupler slots: 6 slots (ONT) 3 slots (optical fibre spl. dist.) either 6x SC simplex, LC duplex or E2000 simplex coupler
Splice protector storage: for 12x crimp or heat shrink splice protectors
Optical distribution and termination box L 3.0
The Langmatz Gf-AP Gr. L 3.0 is a quality product that combines many innovative and proven features. It allows for the management of up to 144 optical fibers, integrated into a robust, protected housing made of polycarbonate with IP54 protection rating. It stands out for its easy handling, simple installation, and high flexibility, with stringent quality requirements for the accommodation, laying, and commissioning of delicate fiber optic technology. What is more, it is approved and eligible for Germany’s National Broadband Funding Programme. What is more, it is approved and eligible for Germany’s National Broadband Funding Programme. Now with Langmatz fibre trays.
Dimensions W x H x D 223 x 320 x 93 mm
Feeder: 1x Ø 7, 10, 12, 16 mm
Coupler slots: 24 slots (ONT) 12 slots (ONT spl. dist.) 6 slots (optical fibre spl. dist.) either 6x SC simplex, LC duplex or E2000 simplex coupler
Splice protector storage: for 72x crimp or heat shrink splice protectors
Pre-assembled fiber optic termination points for handover systems
The pre-assembled fiber optic termination points have been specially developed for the fiber handover system. Thanks to their pre-assembled design, installation effort is significantly reduced, enabling fast commissioning. With IP54 protection, the fiber connections are optimally protected against environmental influences.
Microduct diameter: Ø 10 mm
Microduct Length: 25 m
Number of fibers: 6 / 12 / 24
Fiber color coding according to IEC 60304
Optical distribution and termination boxes
Simple to install with versatile details
Langmatz now has a selection of optical distribution and termination boxes (ONT) in different sizes and with different features in its product range to provide system solutions for FTTB/H optical fi bre networks.
The components form fundamental elements of the optical fi bre architecture, as they connect the network provider's cable to the building network at the building entry point. Langmatz optical distribution and termination boxes are accommodated in a sturdy and protected polycarbonate housing with IP 54 degree of protection. They are suitable for the transition to customer networks, for single-family homes or multiple-family dwellings as well as for companies, and can be used with plug connections, fusion splice connections and couplers / splitters..
They are designed for the easy installation, mounting, routing and commissioning of sophisticated optical fi bre technology for users. Great emphasis has also been placed by Langmatz on excellent fl exibility down to the last detail. Langmatz optical distribution and termination boxes are quality products that combine innovative as well as proven and tested features.
