EK800 - Underground distribution system


Clear dimensions 550 x 800 mm

External dimensions 825 x 1050 x 625/845/1065 mm depending on equipment

Total weight Approx. 285 kg

Load class D 400

Protection 100 A

Protection rating Closed: IP 58/open: IP 54

Maximum installation space for submersion hood 486 x 606 x 76 mm

Cover material Cover: paveable, concrete-lined (tray depth 65 mm) Steel frame: Stainless steel (V2A)

Submersion hood material Stainless steel (V2A)

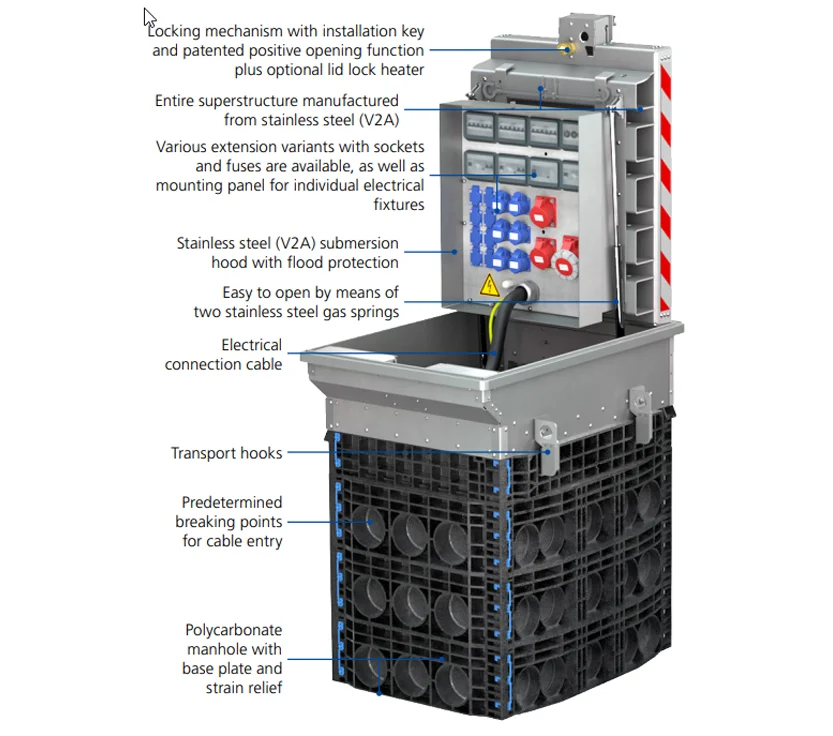

Our EK800 underground distributor features an innovative shaft concept and modular design for flexible site adaptation. The robust construction made of modified polycarbonate ensures durability and resistance to environmental influences. The B125 cover provides additional safety with a swiveling dome, flush locking mechanism, and sockets with line and personal protection according to VDE standards.

Product Features - Body

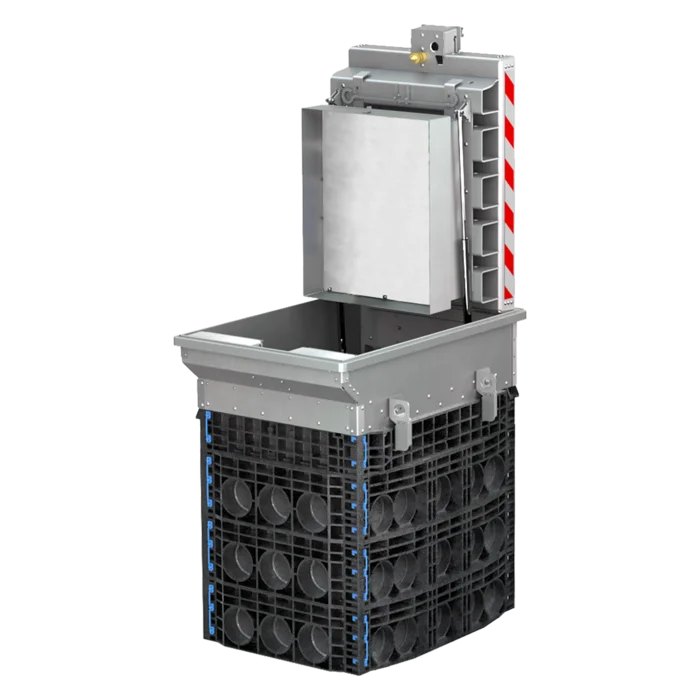

  • Innovative manhole structure with 3D ribFrame - Modular, resistant, and durable system solution that can be adapted to the specific location
  • Modular manhole structure - Flexible, adapts to the respective situation, and easy to handle
  • Modified polycarbonate (PC) - Hard-wearing, certified groundwater compatibility, UV-resistant

Product Features - Cover

  • Submersion hood (swivelling) - Ideal for areas at risk of flooding
  • Locking mechanism and cable outlet flush with the ground - No risk of tripping; secure cable routing with shear protection
  • Cover/submersion hood safety catch - Enhanced accident prevention and safe operation of the equipment compartment
  • A range of different manhole covers is available - Variable surface material, design and structure can be adapted; blends into the cityscape
  • Lock accessible only with a special construction key - Protection against unauthorised access – Security
  • Opening support for cover and submersion hood - Can be operated by non-professionals by means of two stainless steel gas springs. Cover and submersion hood are connected
  • Step protection/trip guard - Prevents people from falling in when the cover is open
  • Positive opening function - Access also when iced over; dirt-resistant
  • Sockets with electrical circuit-breaker and PRCD - High safety standards and accident prevention in accordance with VDE regulations

Expansion Variant - Dome

  • Mounting panel
    • Individualised extension options are possible for the submersion hood
  • Modular socket variants
    • 16 A/230 V Schuko/16 A/400 V Schuko
    • 16 A/400 V CEE/32 A/400 V CEE/63 A/400 V CEE
  • Fresh water connection
  • Waste water connection
  • Terminal housing for back-up fuse
  • Data connection/telecommunication
  • Compressed air
