Langmatz splice fibre trays
Features and versions
fibre management system. They are used in Langmatz fibre distribution
cabinets and also in optical fibre distribution and termination boxes. Their
optimised geometry ensures that they guarantee precise cable routing, while an
improved fastening clamp provides for a secure hold in any position. The larger
channel between the organiser and fibre tray ensures the problem-free entry
and exit of more fibres. The channel closes automatically to prevent fibres
inadvertently springing out when the fibre tray is opened. Naturally, the fibre
tray features a robust bracket on the organiser and has an attractive design.
Experience the future of “Made in Germany” fibre management.
- Support for the fibre trays on the organiser (no additional support component needed)
- Integrated holder for the splitter with dimensions of up to 60 x 7 x 4 mm (L x W x H)
- 10 mm fibre trays with coupler support (1x SC simplex or LC duplex)
- Fibre tray versions available for crimp and heat shrink slice protectors
- Minimum bending radii optimised and designed for fast configuration
- Optimum contrast between all fibre colours and the fibre tray & organiser
- Three locking positions of the fibre trays in the organiser
- Simple clipping in and configuration of the fibre trays
- Halogen-free / flame-proof material
- Fibre tray locking mechanism in the organiser
Splice protection tray | Coupler holder SC simplex or LC duplex (flangeless) | Splitter holder Up to 32 exit fibres | Packaging unit | Article number | Figure |
5mm Langmatz fibre trays | |||||
4 x crimp-splice protectors | - | 1 x (splitter not included) | 12 x | 065690091/002 |
|

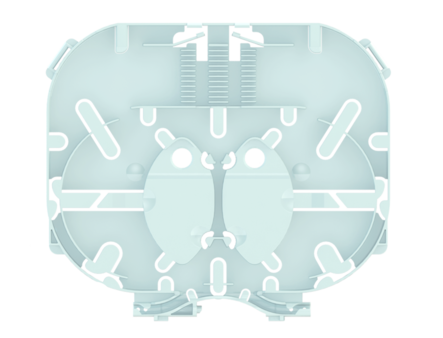

12 x crimp-splice protectors | - | 1 x (splitter not included) | 6 x 12 x | 065690009/001 065690009/002 |
|
12 x crimp-splice protectors | - | - | 6 x 12 x | 065690092/001 065690092/002 |
|
10 mm Langmatz fibre trays (2 fibre tray slots) | |||||
4 x crimp-splice protectors | 1 x (not included) | 1 x (splitter not included) | 3 x | 065690095/004 |
|
4 x crimp-splice protectors | 1 x (including LC/APC duplex coupler) | 1 x (splitter not included) | 3 x | 065690095/002 |
|
12 x crimp-splice protectors | - | 1 x (splitter not included) | 3 x | 065690095/005 |
|
12 x crimp-splice protectors | - | 1 x (splitter not included) | 3 x | 065690095/003 |
|
