Optical fibre building cable & pipe entry system
Together we are bringing high-speed internet into every home
internet connection of the future must be fast, modern and reliable. Builders, however, expect not only maximum
performance, but also an affordable solution. You cannot go wrong with our optical fibre building cable & pipe entry
system: an uncompromising and economical solution.

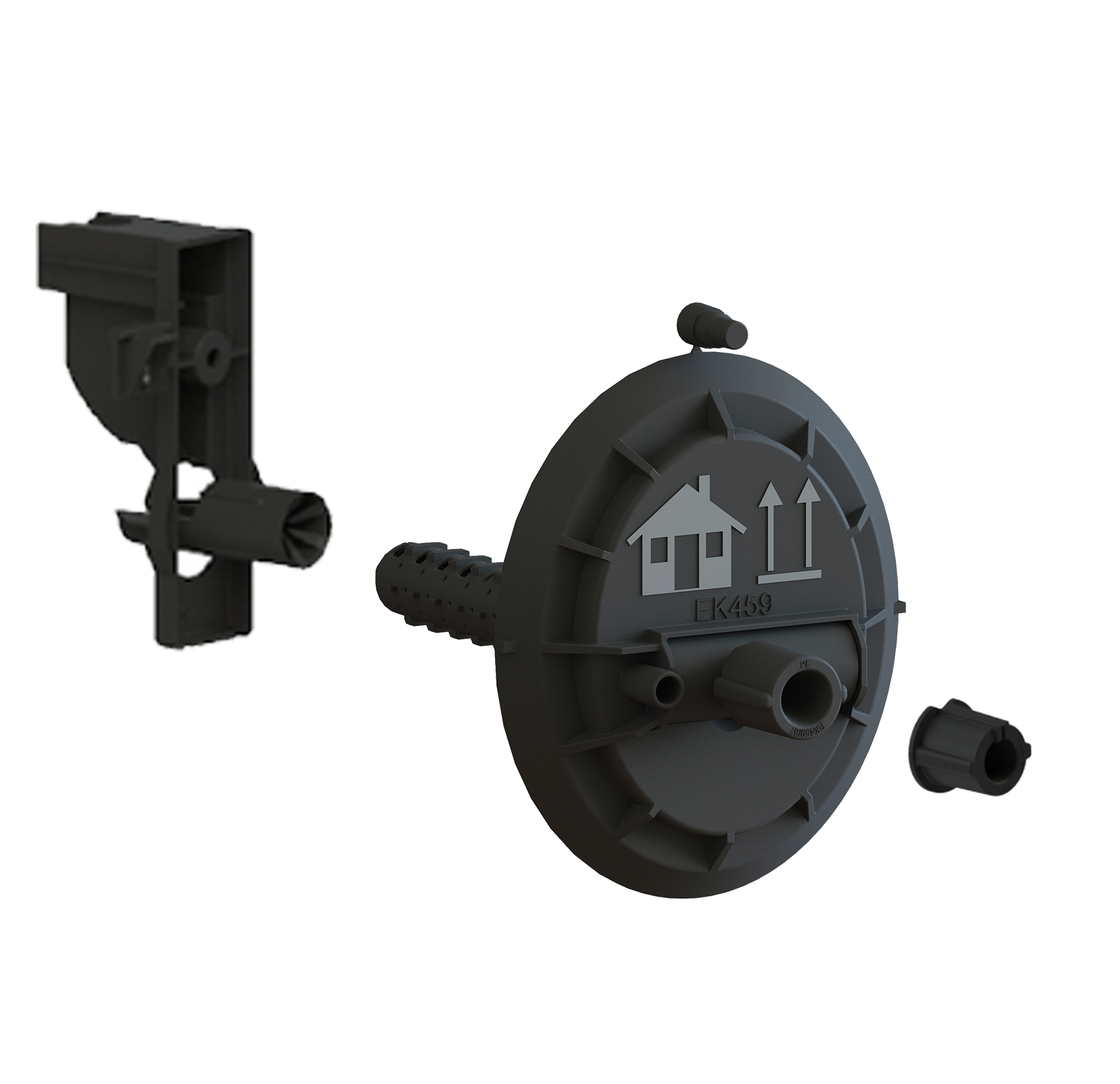

VarioPipe optical fibre building cable & pipe entry system
Our optical-fibre building cable & entry systems are specifically designed for the insertion of microducts into buildings to connect subscribers to the fiber optic network. They can also accommodate other media conductors, such as copper telecommunications cables or oval cables. Suitable for installation in most common wall types, such as waterproof concrete, brick, or hollow blocks, they offer maximum flexibility. During development, particular attention was paid to ensuring that the outer flange and the expanding foam conduit are perfectly matched. This allows for controlled foaming of the outer flange and along the borehole/media conductor, resulting in a high-quality and reliable seal.
Black outside flange made of polyethylene (PE)
Two seals for media conductors: 1x Ø 6 – 13 mm and 2 x Ø 7 mm
Guide element inside, with bending radius limitation to R 60 mm
Reliable sealing thanks to expanding 2-component sealing foam

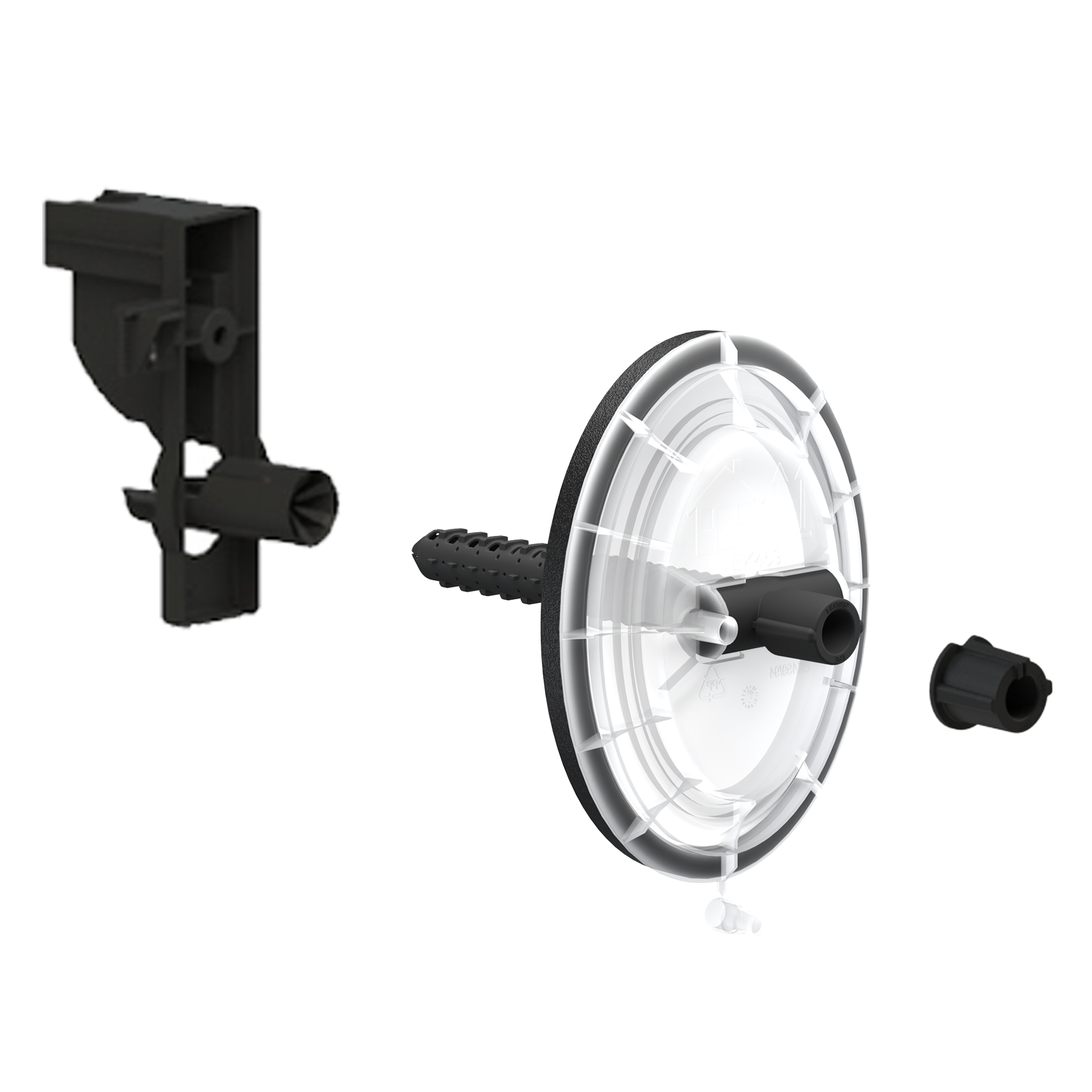

VarioPipe Plus optical fibre building cable & pipe entry system
Our optical-fibre building cable & entry systems are specifically designed for the insertion of microducts into buildings to connect subscribers to the fiber optic network. They can also accommodate other media conductors, such as copper telecommunications cables or oval cables. Suitable for installation in most common wall types, such as waterproof concrete, brick, or hollow blocks, they offer maximum flexibility. During development, particular attention was paid to ensuring that the outer flange and the expanding foam conduit are perfectly matched. This allows for controlled foaming of the outer flange and along the borehole/media conductor, resulting in a high-quality and reliable seal.
Transparent outside flange made of polypropylene (PP), with self-adhesive foam tape
Two seals for media conductors: 1x Ø 6 – 13 mm and 2 x Ø 7 mm
Guide element inside, with bending radius limitation to R 60 mm
Reliable sealing thanks to expanding 2-component sealing foam

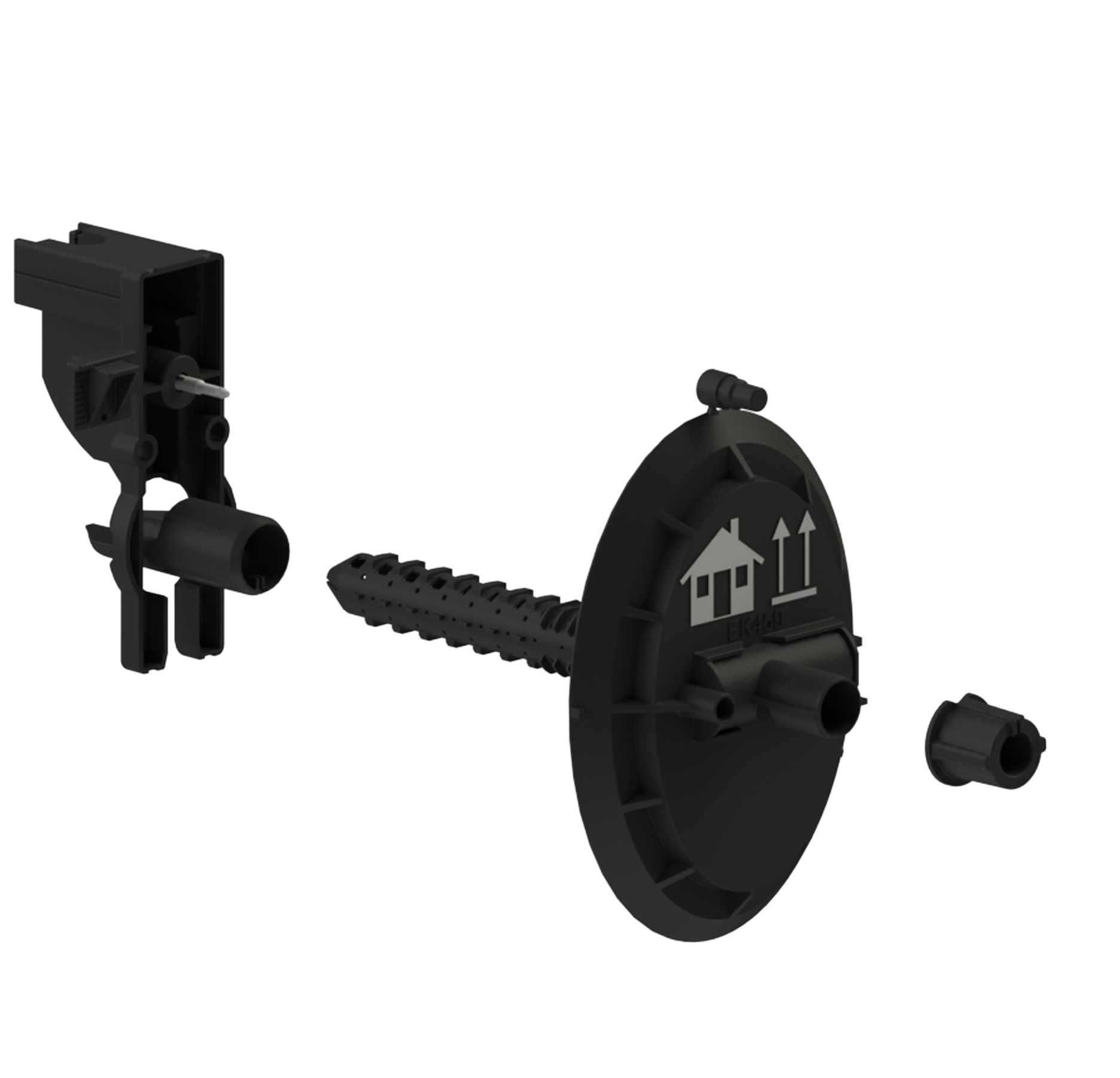

VarioPipe - built over - optical fibre building cable & pipe entry system
Our optical-fibre building cable & entry systems are specifically designed for the insertion of microducts into buildings to connect subscribers to the fiber optic network. They can also accommodate other media conductors, such as copper telecommunications cables or oval cables. Suitable for installation in most common wall types, such as waterproof concrete, brick, or hollow blocks, they offer maximum flexibility. During development, particular attention was paid to ensuring that the outer flange and the expanding foam conduit are perfectly matched. This allows for controlled foaming of the outer flange and along the borehole/media conductor, resulting in a high-quality and reliable seal.
Black outside flange made of polyethylene (PE)
Overlayable seal for media conductors: 1x Ø 6 – 13 mm
Interior guide element that can be built over, with a bending radius limited to R 60 mm
Reliable sealing thanks to expanding 2-component sealing foam
The flexible solution for every situation -
Gf-House Entry VarioPipe by Langmatz
Â
Whether with or without a basement, whether built with concrete, bricks, or with hollow blocks.When facing the challenge of having to respond to every homeowner's request, you'll find the perfect solution for every case with us. Langmatz offers various house entry systems for buildings with and without basements for up to five service lines. Additionally, we provide the appropriate sealing technology for all common types of masonry - easy to install, always securely sealed.
