EK510 flex - Underground distribution system
Highlights
Clear width: 400 x 650 mm
Outer dimensions: 550 x 765 x 510 mm / opened 910 mm
Total weight approximately 53 kg
Max. load class 125 kN or 12.5 tonnes
Protection class closed: IP48 / opened: IP44
Maximum installation space Dome: 277 x 479 x 207 mm
Cover material: Cover: plastic (glass-reinforced plastic) with non-slip coating Steel frame: Steel (hot-dip galvanised)
Cover material: Polycarbonate (PC)
Download
Our EK510 flex underground distributor features an innovative shaft concept and modular design for flexible site adaptation. The robust construction made of modified polycarbonate ensures durability and resistance to environmental influences. The B125 cover provides additional safety with a swiveling dome, flush locking mechanism, and sockets with line and personal protection according to VDE standards.
Product Features - Body
- Innovative manhole structure with 3D ribFrame - Modular, resistant, and durable system solution that can be adapted to the specific location
- Modular manhole structure - Flexible, adapts to the respective situation, and easy to handle
- Modified polycarbonate (PC) - Hard-wearing, certified groundwater compatibility, UV-resistant
Product Features - Cover
- Submersion hood (swivelling) - Ideal for areas at risk of flooding
- Locking mechanism and cable outlet flush with the ground - No risk of tripping; secure cable routing with shear protection
- Cover/submersion hood safety catch - Enhanced accident prevention and safe operation of the equipment compartment
- Opening support for submersion hood - Ease of opening due to low submersion hood weight or by two stainless steel gas springs
- Positive opening function - Access also when iced over; dirt-resistant
- Cover/lid - Plastic cover and submersion hood permit the transmission of radio waves
Expansion Variant - Dome
- Mounting plate
- Customised extension options are possible for the submersion hood

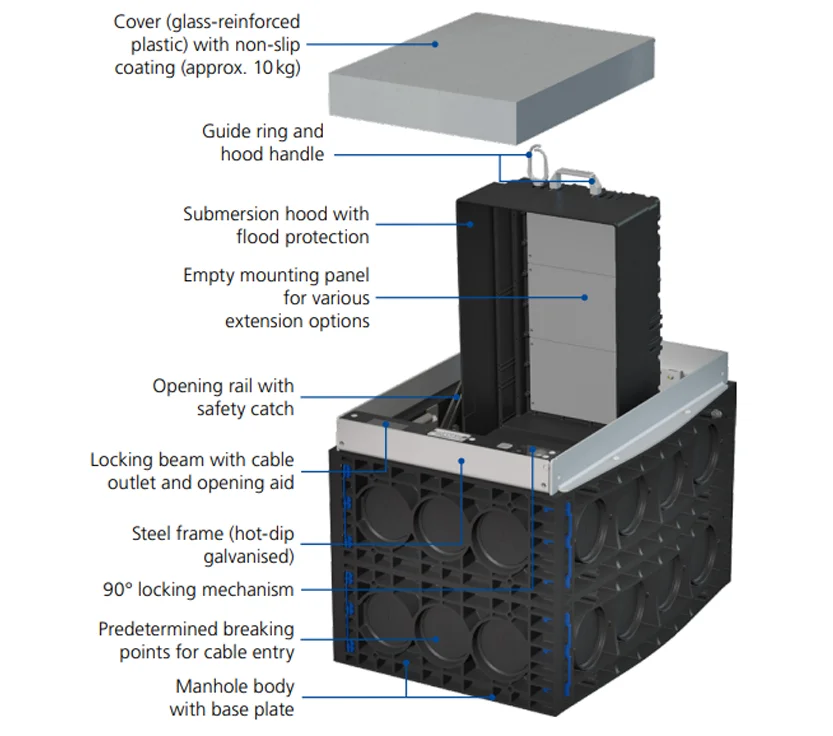

Construction
