EK980 Polycarbonate foundation L Classica

EK980 Polycarbonate foundation L Classic

Highlights

Clear dimensions: 650 x 800 mm

Total weight Approx.: 110 kg

High number of compatible charging stations

Low transportation, logistics, and assembly costs

Download

Data sheet Catalogue Manual Compatible foundations

The efficient installation of charging columns is an important decision-making criterion when implementing charging infrastructure projects. This is possible with this innovative solution from Langmatz.
Using the easy-to-install foundation, companies can prepare the charging infrastructure for employees or customers and gradually equip it with
charging columns as required. The construction, made of high-quality plastic, and the innovative 3D ribFrame technology ensure durability and
problem-free installation. The Langmatz polycarbonate foundation features mounts for the most common charging columns and wall box
columns (including Mennekes, ABL, KEBA, ABB, Alpitronic, Ekoenergetyka etc.). Langmatz is continuously extending its product range to cover
the ever-increasing number of EV charging columns. Please visit our website for the most up-to-date list.

Product features - Body

  • Innovative manhole structure with 3D ribFrame Modular, resistant, and durable system solution that can be adapted to the specific location
  • Modular manhole structure Flexible, adapts to the respective situation and easy to handle
  • Modified polycarbonate (PC) Hard-wearing, certified groundwater compatibility, UV-resistant

Advantages

  • Low transport, logistics and installation costs
    • Lightweight
    • Installation by lightweight crane, mini-digger
    • No concrete foundation necessary
    • Variable installation depth
    • Flexible predetermined breaking points for cable entries
    • Flexible and exchangeable column mount design
    • Operating equipment can be accommodated in the empty foundation space
  • Great time flexibility in civil engineering
    • Fast installation of the foundation
    • Polycarbonate foundation and charging column can be installed separately
    • One-off civil engineering work, despite subsequent addition of charging columns
    • Cast-iron cover that withstands the weight of vehicles (D400) for installation of the EV charging column without a time limit

Accessories

  • Cast-iron cover complies with load class B125 in accordance with DIN EN 124
  • Earthing and strain relief kit

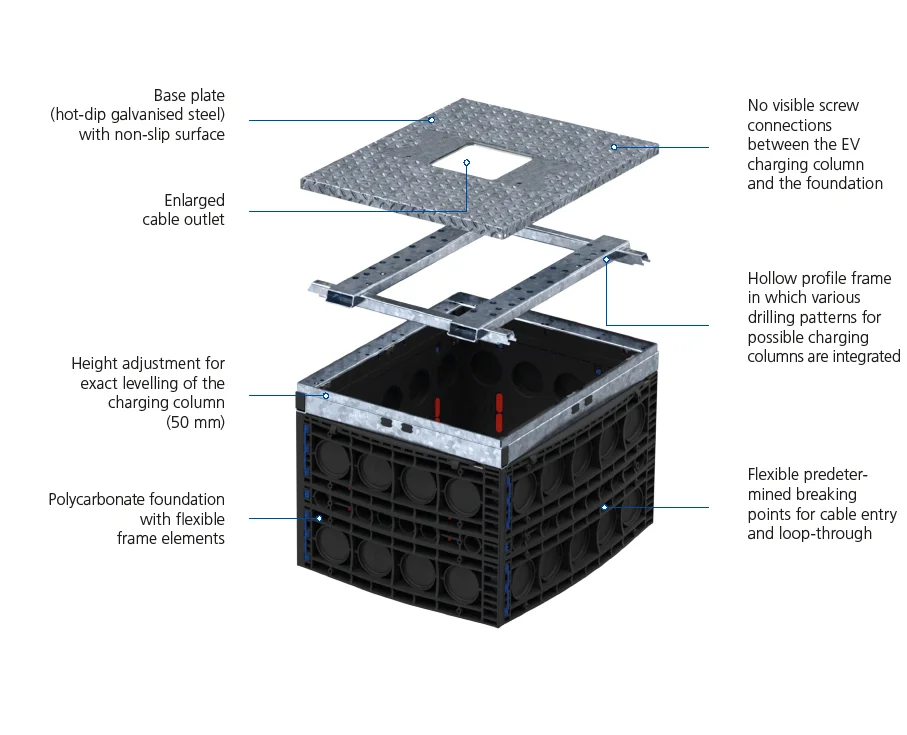

Design
