Langmatz Fibre Management System (L-FMS)

State-of-the-art architecture for ease of handling

Generation 3.0 of Langmatz fibre distribution cabinets incorporates the Langmatz fibre management system, and thus includes trailblazing innovations. Developed in close collaboration with industry experts, our solution provides for intuitive handling, optimum cable routing, organisation, diversion and management of micro-duct pipes, cables and fibres.
All individual components of the Langmatz fibre management system can also be installed without the need for tools.
Our aim was to optimise installation and retrofit time, making the end product considerably simpler to set up.

Langmatz fibre distribution cabinets generation 3.0

1

Mounting panel

2

Micro cable organiser

3

Feeder cable strain relief

4

Cable diversion hook-and-loop strap

5

End piece

6

Organiser

7

Fibre bridge

8

Langmatz fibre tray (in a range of different versions)

9

Hook-and-loop strap to fix the fibre trays

10

Protective cover for tray section

11

Transparent cover for the uppermost fibre tray

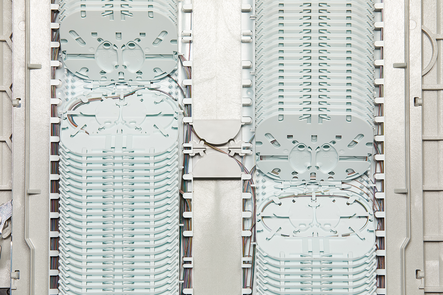

Fibre trays and organiser

  • 3 locking positions of the splice fibre tray in the organiser
  • Halogen-free / flame-proof material
  • Fibre tray locking mechanism in the organiser
  • Support for fibre trays on the organiser (no additional component needed)
  • Fast configuration and clipping in of fibre trays
  • Optimum contrast between all fibre colours and the fibre tray & organiser
  • 5 mm fibre tray: Integrated bracket for splitters up to 1:32
  • 10 mm fibre tray: Patch option (1x SC/LC duplex coupler)
  • All fibre management elements and minimum bending radii have been optimised and designed for fast configuration
  • Maximum fibre capacity (32 fibres through hinged fibre channel)

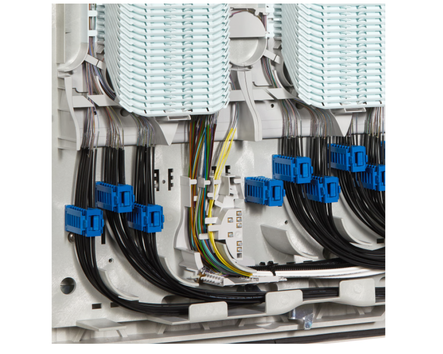

Micro cable organiser and feeder cable strain relief

on the door

  • Flexible tool-free positioning
  • Greater range of micro cable organiser diameters
  • Addition and replacement of drop cables without the need to affect or remove adjacent cables
  • New: now with up to 7x main cables of ≤ Ø 6.5 mm or 4x main cables of up to Ø 10 mm / corrugated tube up to Ø 13.5 mm
  • I ntegrated strain relief bracket in the feeder cable strain relief magazine to provide strain relief for the fibre strength member of the core of fibre cable

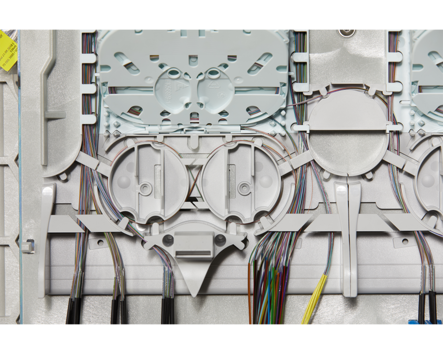

End piece

  • Wide entry port area ideal for the simple configuration and organisation of the feeder and drop cables
  • Labelled standardised sheath stripping zone
