Fuse Boxes -
On the safe side with Langmatz fuse boxes
Cable Terminal Set | Cable Terminal Box | Cable Junction Box
Langmatz fuse boxes are made of high-quality polycarbonate plastic and are available with 1, 2 or 3 fuses respectively.
Proven terminal block technologies ensure simple, fast and safe assembly for all lighting poles with standard inner diameters.

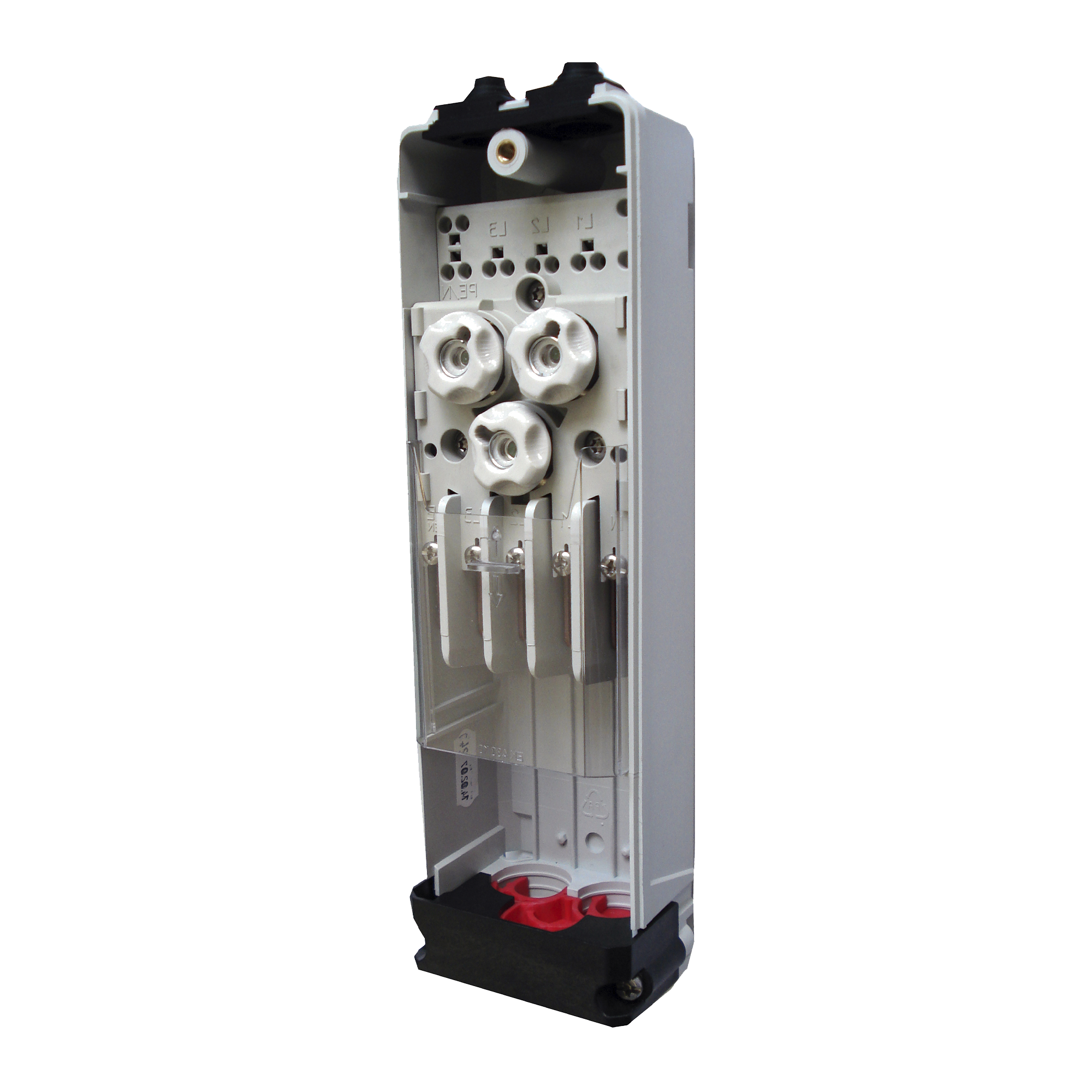

Fuse Box EK480
Fuse Box EK480 | The Standard
- For lighting poles with 90 mm inner diameter
- Sliding clamp technology for simple assembly in the inlet area
- Spring clamp technology for simple assembly in the outlet area
- Up to three fuses can be configured
Fuse Box EK480 with surge protection device (SPD)
Fuse Box EK480 | Design with surge protection device (SPD)
- For lighting poles with 90 mm inner diameter
- Sliding clamp technology for simple assembly in the inlet area
- Spring clamp technology for simple assembly in the outlet area
- Up to three fuses can be configured
Surge protection device (SPD)
- Surge arresters protect our luminaires from lightning, overvoltage and switching operations
- Type-2 multi-phase overvoltage protection with monitoring and arrestor disconnection function
- Dual optical (LED) failure detection for the supplementary discharge path and the control phase / steering phase
- Transparent housing allows for easy visual inspection of the failure detection indicators

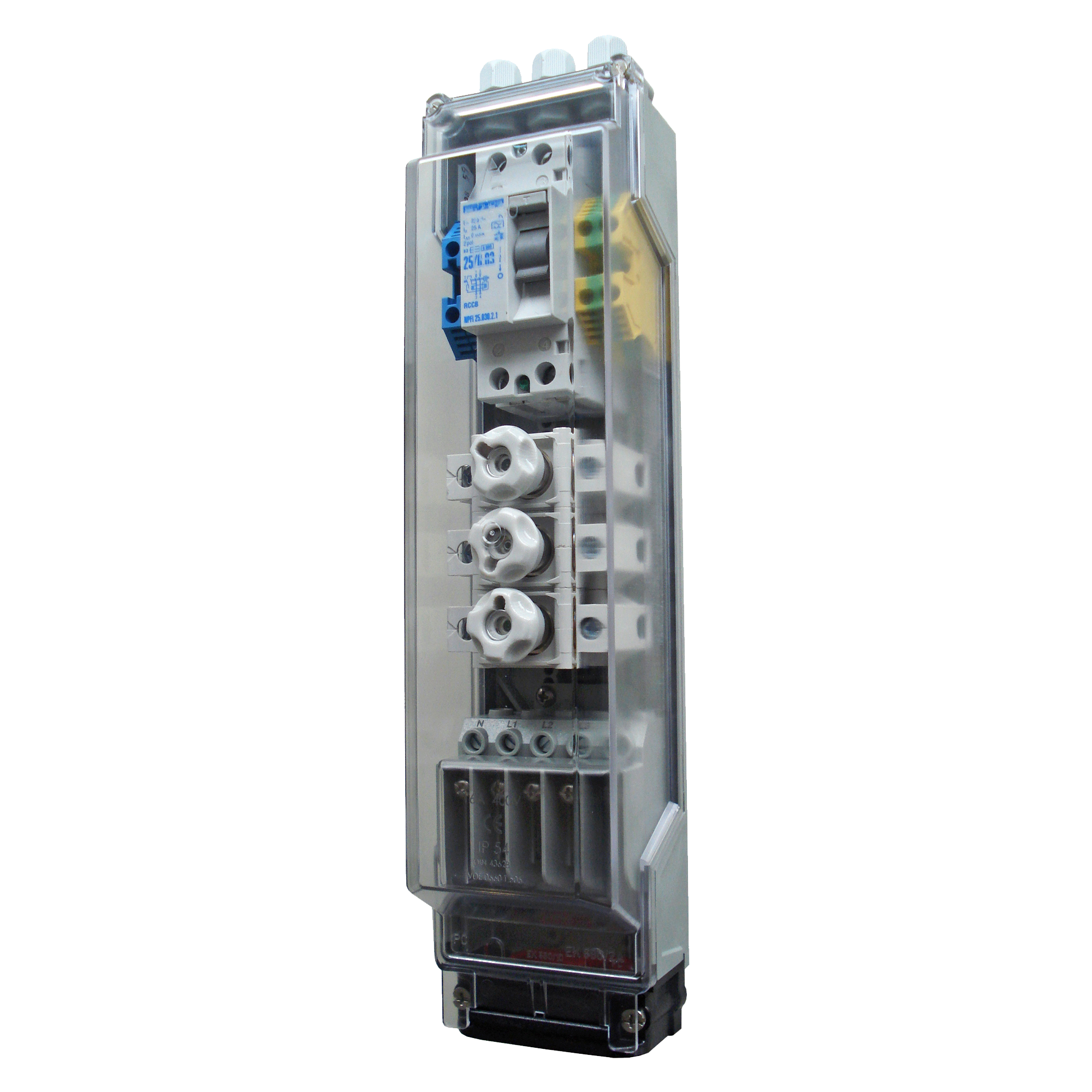

Fuse Box EK580
Fuse Box EK580 | The Flexible
- 6 housing variants (3 housing lengths and 2 cover heights)
- Protection rating: IP54
- Protection class II
- Suitable for pole door openings 300 x 100 mm and 400 x 100 mm
- Housing bottom with 5 mm grid for fl exible positioning of top hat rails
- Protection of 1 – 3 lights by means of screw fuses
- Supply to and protection of sockets via residual current circuit breakers (RCD)
- Is required to protect sockets in public areas (mandatory), e.g. Christmas lighting

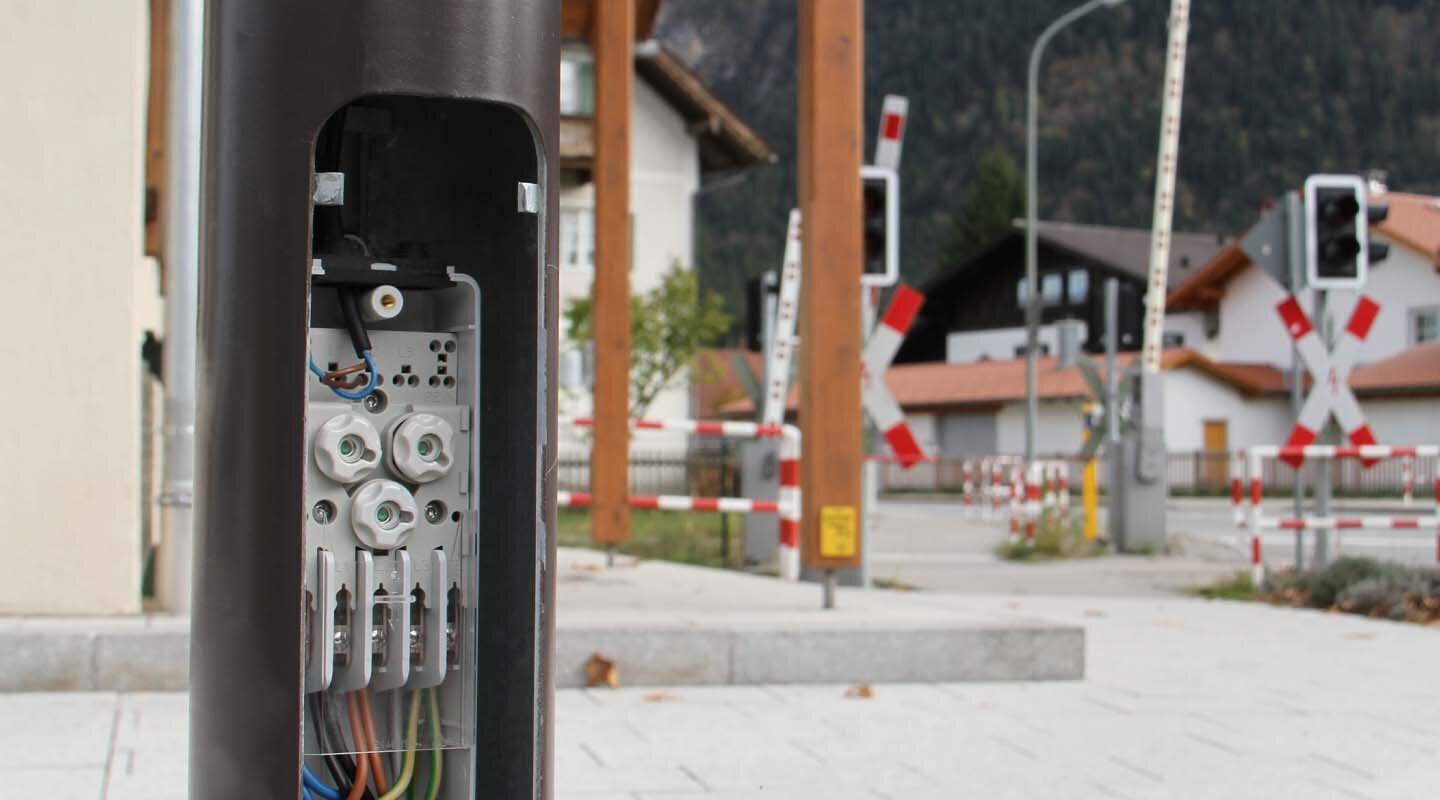

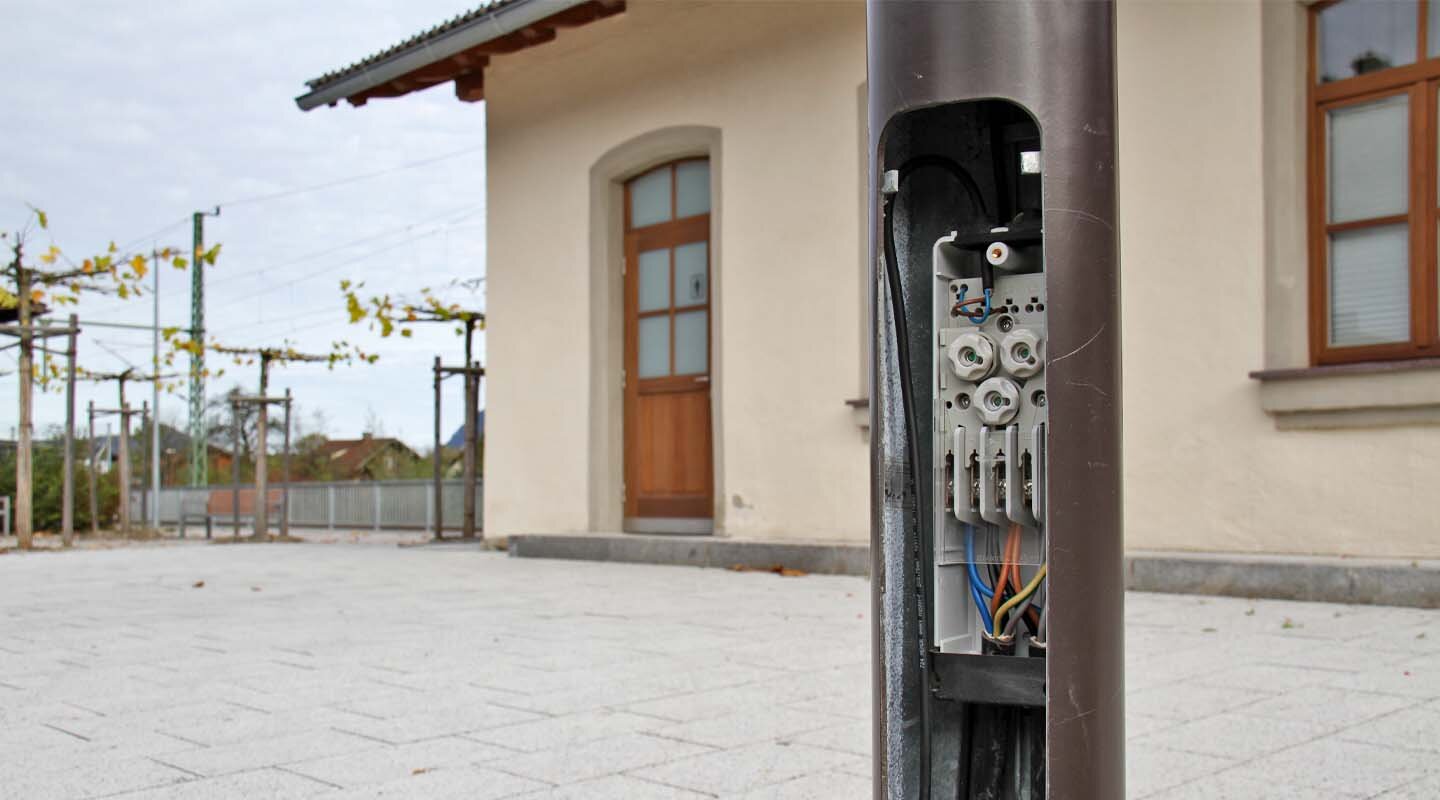

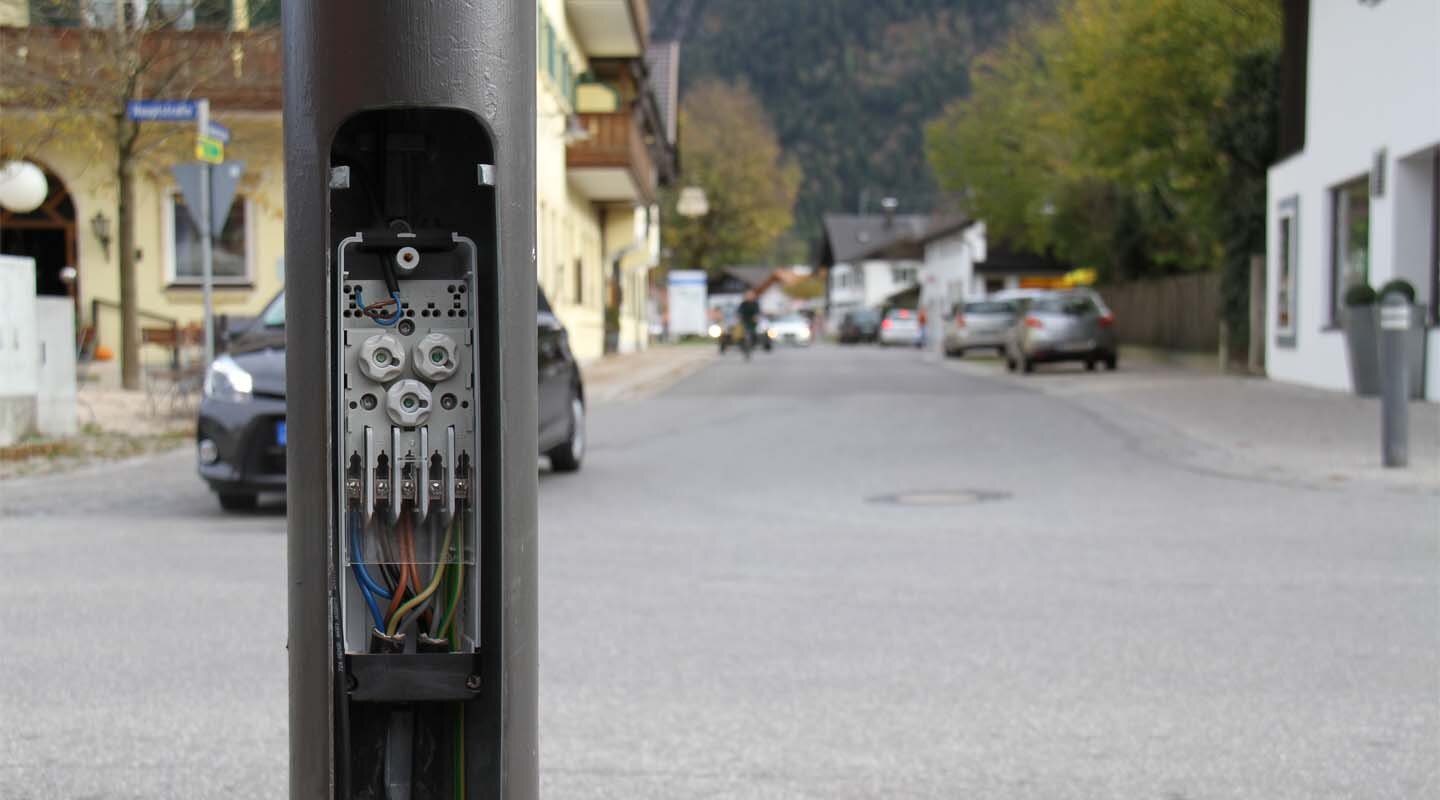

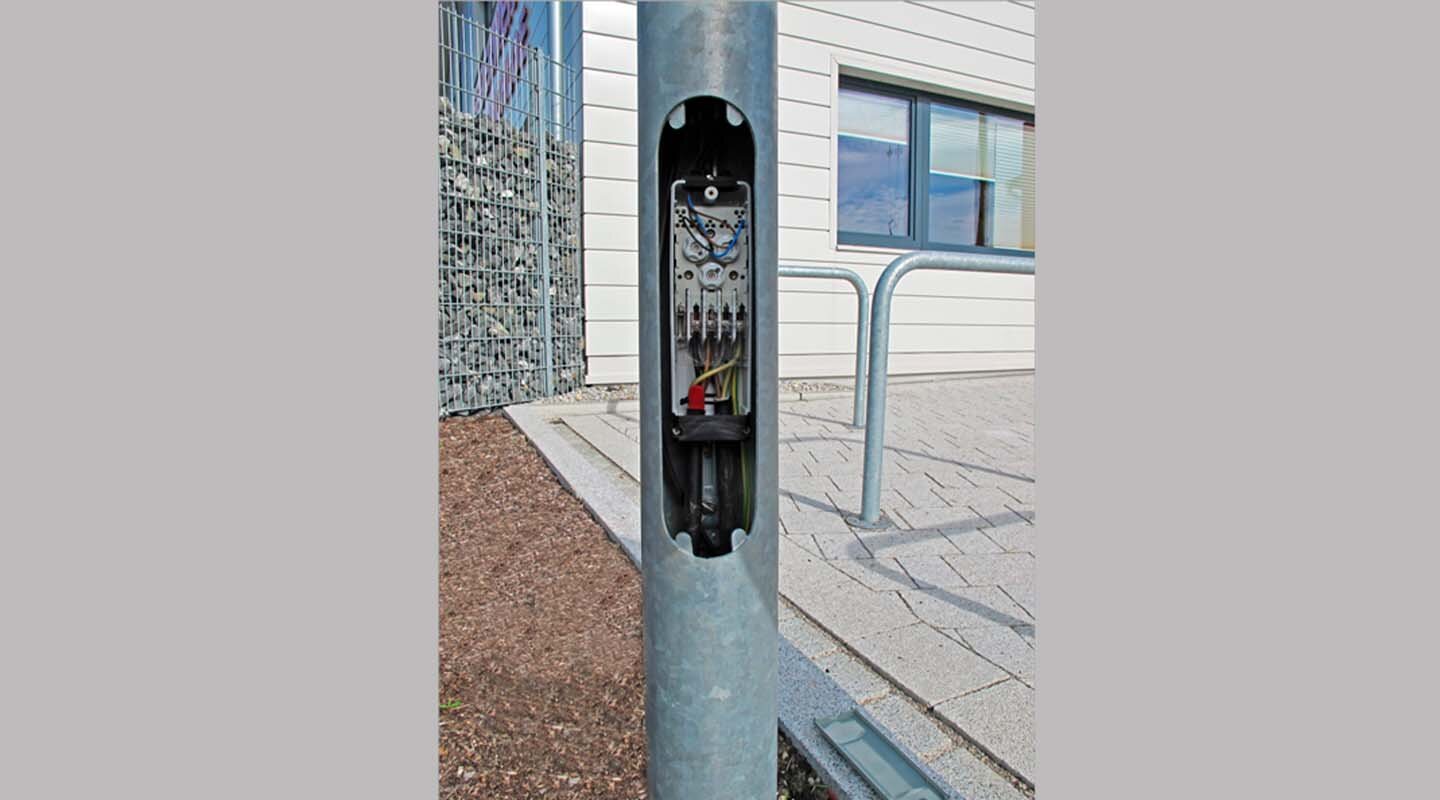

Practical Examples
Practical application examples for Langmatz fuse boxes.
