EK510 connect - Underground distribution system

Highlights

Clear width: 400 x 650 mm

Outer dimensions: 618 x 790 x 511 mm / opened 1230 mm

Total weight approximately 75 kg

Max. load class B125

Max. protection rating 63 A

Protection class closed: IP48 / opened: IP44

Maximum installation space Dome: 339 x 402 x 207 mm

Cover material: Cover: stainless steel (V2A) chequered stud plate look, Steel frame: Stainless steel (V2A)

Cover material: Polycarbonate (PC)

Download

Our EK510 connect underground distributor features an innovative shaft concept and modular design for flexible site adaptation. The robust construction made of modified polycarbonate ensures durability and resistance to environmental influences. The B125 cover provides additional safety with a swiveling dome, flush locking mechanism, and sockets with line and personal protection according to VDE standards.

Product Features - Body

  • Innovative manhole structure with 3D ribFrame - Modular, resistant, and durable system solution that can be adapted to the specific location
  • Modular manhole structure - Flexible, adapts to the respective situation, and easy to handle
  • Modified polycarbonate (PC) - Hard-wearing, certified groundwater compatibility, UV-resistant

Product Features - Cover

  • Submersion hood (swivelling) - Ideal for areas at risk of fl ooding
  • Locking mechanism and cable outlet flush with the ground - No risk of tripping; secure cable routing with shear protection
  • Cover/submersion hood safety catch - Enhanced accident prevention and safe operation of the equipment compartment
  • Lock accessible only with a special construction key - Protection against unauthorised access – Security
  • Opening support for cover and submersion hood - Can be operated by non-professionals by means of two stainless steel gas springs. Cover and submersion hood are connected
  • Step protection/trip guard - Prevents people from falling in when the cover is open
  • Positive opening function - Access also when iced over; dirt-resistant
  • Sockets with electrical circuit-breaker and PRCD - High safety standards and accident prevention in accordance with VDE regulations

Expansion Variant - Dome

  • Socket variants
    • 16 A/230 V Schuko/16 A/400 V Schuko
    • 16 A/400 V CEE/32 A/400 V CEE
  • Line/personal protection switches
    • Circuit-breaker B-16 A 1-phase
    • Circuit-breaker C-16 A/32 A 3-phase
    • FI/RCD 63 A Type A
  • Mounting plate
    • Customised extension options are possible for the submersion hood

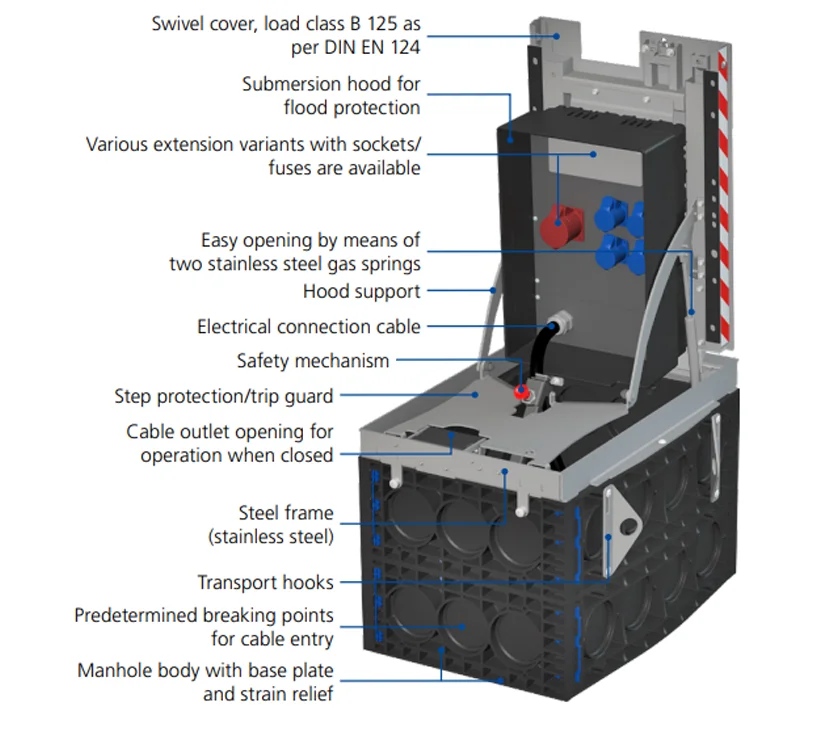

Construction
