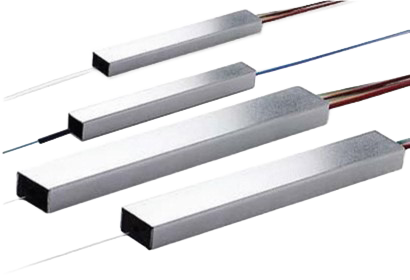

PLC splitters
All splitters listed on the data sheet are fully compatible with Langmatz 5 mm and 10 mm fibre trays and can be securely inserted into the mounts provided.
Combining our Langmatz optical fibre products with our tested splitters guarantees secure, clear and standard-compliant fibre routing at all times.
Benefits
- Low insertion loss (IL) with high return loss (RL)
- Compact coupler design for installation in splice fibre trays
- Broad wavelength spectrum
- Low wavelength-dependent loss (WDL)
- Low polarization-dependent loss (PDL)
- High reliability
- High durability
- Can be used at very low and very high temperatures
- Wide range of applications: FTTX, PON networks, CATV, optical signal distribution, XGs-PON
Technical data
Number of ports | 1:8 | 1:16 | 1:32 | 2:4 | 2:8 | 2:16 | 2:32 |
Operating wavelength (nm) | 1260 to 1650 | ||||||
Insertion loss (dB) | ≤ 10,2 | ≤ 13,5 | ≤ 16,5 | 7,4 | ≤ 10,5 | ≤ 13,8 | ≤ 16,8 |
Reflection loss (dB) | ≤ 55 | ||||||
Deviation (dB) | ≤ 0,8 | ≤ 1,2 | ≤ 1,5 | ≤ 0,6 | ≤ 0,8 | ≤ 1,2 | ≤ 1,5 |
PDL (dB) | ≤ 0,15 | ≤ 0,25 | ≤ 0,3 | ≤ 0,15 | ≤ 0,15 | ≤ 0,25 | ≤ 0,3 |
Wavelength-dependent loss (WDL) (dB) | ≤ 0,5 | ≤ 0,8 | ≤ 0,8 | ≤ 0,5 | ≤ 0,5 | ≤ 0,8 | ≤ 0,8 |
Directivity (dB) | ≤ 55 | ||||||
Operating temperature | -40° C to +85° C | ||||||
Storage temperature | -40° C to +85° C | ||||||
Splitter cabinet dimensions (L x H x W) (mm) | 40 x 4 x 4 | 60 x 7 x 4 | 60 x 7 x 4 | 60 x 7 x 4 | 60 x 7 x 4 | 60 x 7 x 4 | 60 x 7 x 4 |
Fibre type | G.657.A1 - deribbonised | ||||||
Mode field diameter | 8.6 ± 0.4µm @ 1310 nm | ||||||
Input fibre ø (µm) | 250 | 250 | 250 | 900 | 900 | 900 | 900 |
Input fibre colour | White | ||||||
Input fibre / core length (m) | ≤ 2,50 | ≤ 2,50 | ≤ 2,50 | 0,6 | 0,6 | 0,6 | 0,6 |
Input ports | None | LC-APC 8° class B | |||||
Output fibre ø (µm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
Output fibre colour | Yellow | ||||||
Output fibre length (m) | ≤ 2,50 | ≤ 2,50 | ≤ 2,50 | ≤ 2,50 | ≤ 2,50 | ≤ 2,50 | ≤ 2,50 |
Minimum order quantity: 10 x | |||||||
Article numbers | 700895630 | 700895631 | 700895632 | 700895633 | 700895634 | 700895635 | 700895636 |
