Patch panels for the L-FMS
Accessories for the Langmatz fibre management system

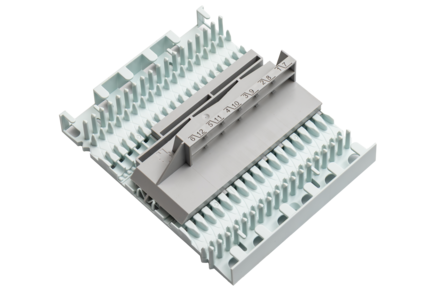

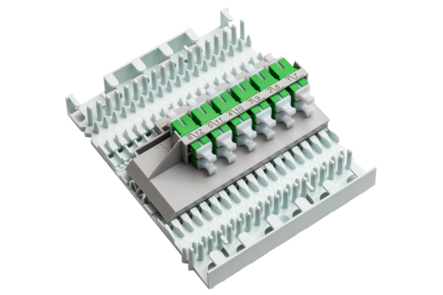

The patch panel is an optional accessory for the Langmatz fibre management
system. It is suitable for installation on the organiser and permits up to
twelve SC simplex, LC duplex or E2000 simplex couplers to be accommodated
flange-free.
system. It is suitable for installation on the organiser and permits up to
twelve SC simplex, LC duplex or E2000 simplex couplers to be accommodated
flange-free.
Benefits
- Can be used in all Langmatz fibre distribution cabinets, version 3.0
- Fits Langmatz fibre management system organisers
- Clear and space-saving management of optical fibre plug connections
- Identification numbers for each slot for unique assignment
Technical data
Designation | L-FMS Patchfeld |
External dimensions (W x H x D) | 66 x 130 x 35 mm (populates 18 fibre tray slots) |
Weight | approx. 0.1 kg (without couplers) |
Material | ABS plastic |
Colour | RAL 7038 |
Coupler slots | 12 x SC simplex, LC duplex, E2000 couplers |
Mounting | tool-free |
Article number | 065690110 |
Dimensions
