Optical fibre transfer system
Maximum flexibility coupled with the ultimate in quality
entry system and pre-assembled optical fibre distribution and termination box – is the innovative interface solution for
network level 3. The number of installation steps in the building can be drastically reduced. In the best possible case, all
that is needed is a single visit to the end customer, obviating the need for time-consuming visit arrangements and high

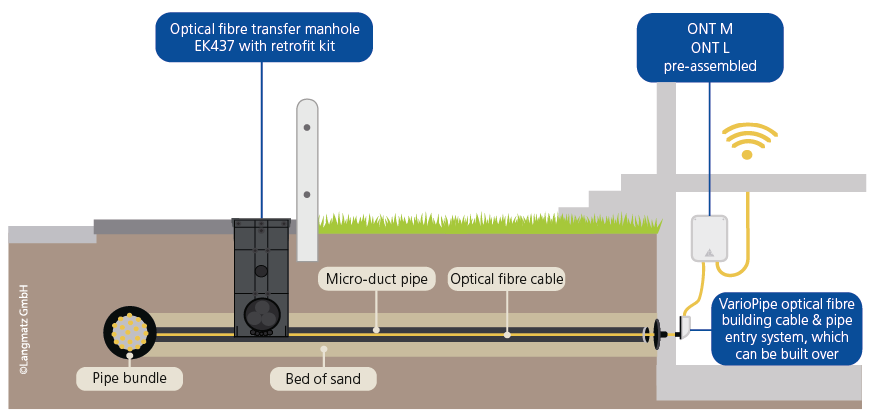

staffing costs for organisational work. The optical fibre transfer system consists of the following components:
The optical fibre transfer system contains the following components:
Optical fibre transfer manhole EK437 with retrofit kit
The optical fibre transfer manhole EK437 provides a reliable and future-proof solution for expansion of the optical fibre infrastructure. Combined with the retrofit kit for the optical fibre transfer manhole, consisting of a diving-bell cabinet and splice unit, it impresses with its fast and simple installation. Its diving-bell cabinet design offers optimum protection from the ingress of groundwater into the manhole.
- Permanently accessible transfer point outside the building
- Diving-bell cabinet principle to protect against the ingress of water
- Splice unit to accommodate up to 48 shrink-splice protectors
VarioPipe optical fibre building cable & pipe entry system
Our VarioPipe, which can be built over, offers a flexible, gas-tight and pressurised water-tight optical fibre building cable & pipe entry system up to a pressure of 1 bar.
- For buildings with and without basement
- Gas- and water-pressure-tight up to 1 bar
- Hole diameter 25 mm
- Horizontal or angled installation up to 45° upwards (continuous)
Optical fibre distribution and termination boxes, pre-assembled
Pre-assembled optical fibre distribution and termination boxes (ONT sizes M and L) specially designed for this system ensure time-saving, secure and flexible installation of optical fibres. This well thought-out fibre management system delivers stable signal transmission. Depending on the requirements, models are available for compact installations with capacities of up to 24 fibres.
- Pre-assembled with coloured fibres as per IEC 60304
- Equipped with duplex loop connectors for technical acceptance measurement
- Cables with up to max. 24 fibres injected into micro-duct pipes
- Cabinet sealed with external mounting brackets
