Capacity to build over with adapter plates
Simply install manholes over existing systems
Frames with rectangular openings are used for the subsequent installation of manholes on existing cable routes. Appropriate adapter plates are used to integrate the conduits. Unused openings are closed with closing plates.

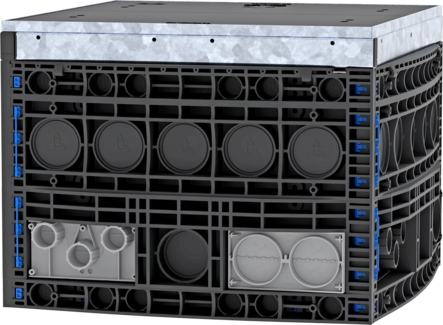

- Adapter plates are supplied in black. These have been greyed out to display them better.
- Adapters available for pipes with a smaller diameter at the predetermined breaking point Ø 110 mm (Ø 100 mm, Ø 90 mm, Ø 75 mm, Ø 63 mm, Ø 50 mm, Ø 40 mm adapters) or a very large diameter at the predetermined breaking point Ø 160 mm (Ø 140 mm, Ø 125 mm, Ø 110 mm adapters).
Examples of adapter plates
Split adapter plate 2 x predetermined breaking points Ø 110 mm | Split adapter plate 2 x felexible predetermined breaking points Ø 40–125 mm | Split adapter plate 3 x predetermined breaking points Ø 50 mm | Closing plate Rectangular opening 130 x 236 mm | Split adapter plate 2 x openings ID ⌀ 50 & 125 mm, für 350 mm high frame |
